41.6m² elevated goat housing shed working drawing PDF — low-cost design, 8.3m × 5.5m

Ideal for small to medium-scale goat farmers building a practical, elevated housing structure using locally available materials.

Layout

• Elevated slatted floor (treated gum pole) at 750mm above ground level
• 4 bays (2m × 2m each) with diamond mesh steel fencing
• Lockable steel tube and diamond mesh access gate
• Treated gum pole access ramp

Construction specs

• 345mm × 345mm brick columns (20 total)
• Treated gum pole pillars, beams, walls, and flooring
• Treated reused timber slates for upper walls
• 25° IBR roofing sheet
• Diamond mesh steel fencing on all sides
• Overall height: 3m to ridge

What's in the PDF

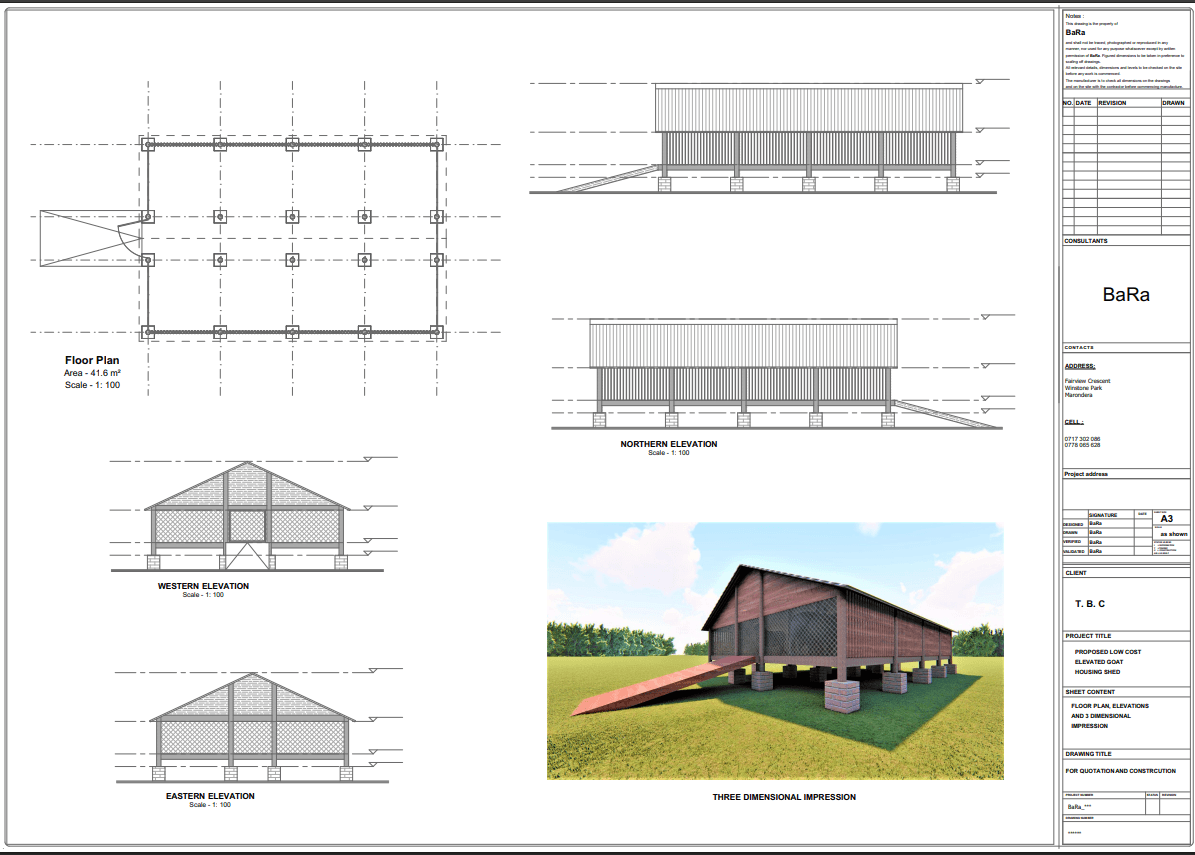

• Full dimensioned floor plan (1:100 scale)
• All four elevations with measurements (1:100 scale)
• 3D impression of the finished structure
• Working drawing with detailed construction dimensions
