146m² piggery house working drawing PDF — 10-pen layout, 16.4m × 8.9m

Ideal for small to medium-scale pig farmers building a low-cost, practical structure.

Layout

• 1 sow pen
• 3 farrowing pens (sows & piglets)
• 1 boar pen
• 3 weaner/grower pens
• 2 feed storage rooms

Construction specs

• Each pen: 9m² (3m × 3m)
• 1,200mm brick walls + grano floors sloped for drainage
• 1,200mm × 1,000mm double-swing metal gates
• 230mm brick walls, 250mm × 40mm timber roof beams at 1,800mm height
• Excellent natural ventilation

What's in the PDF

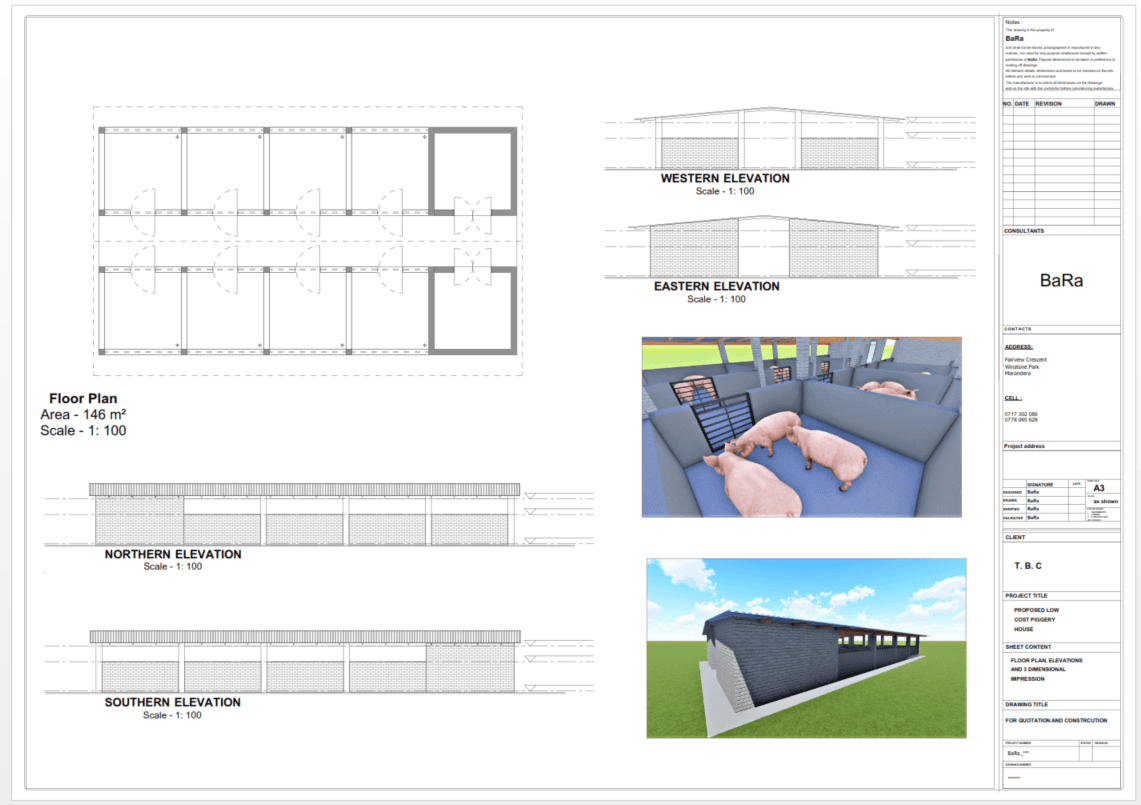

• Full dimensioned floor plan
• All four elevations (1:100 scale)
• 3D impressions of the finished structure
• Suitable for locally available materials
